anti metal RFID tags for gas cylinderanti metal RFID tags for gas cylinderanti metal RFID tags for gas cylinder

anti metal RFID tags for gas cylinder

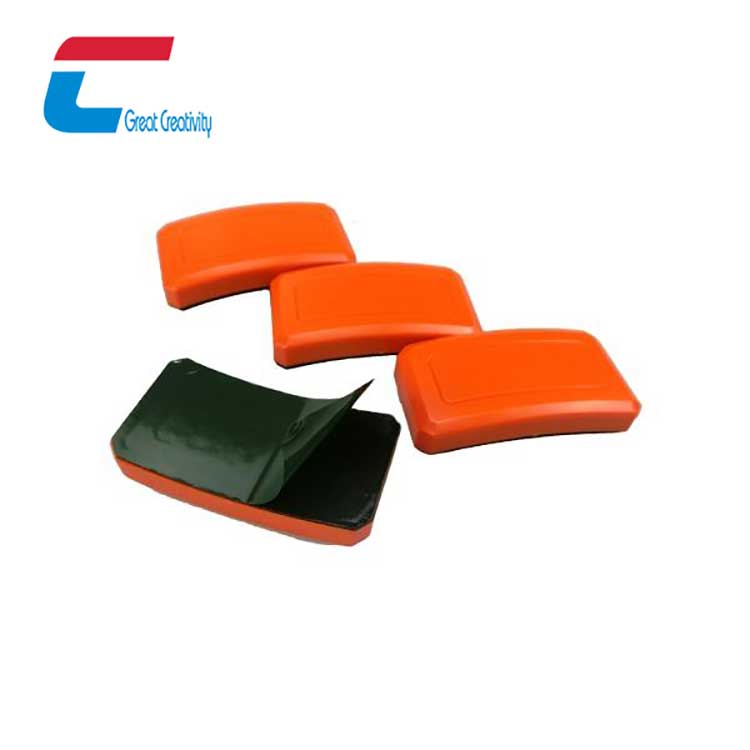

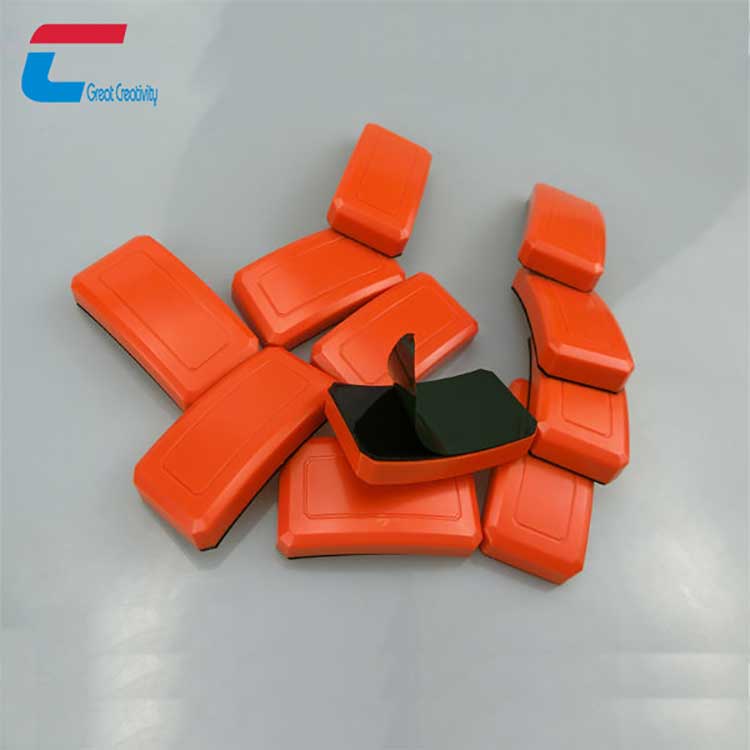

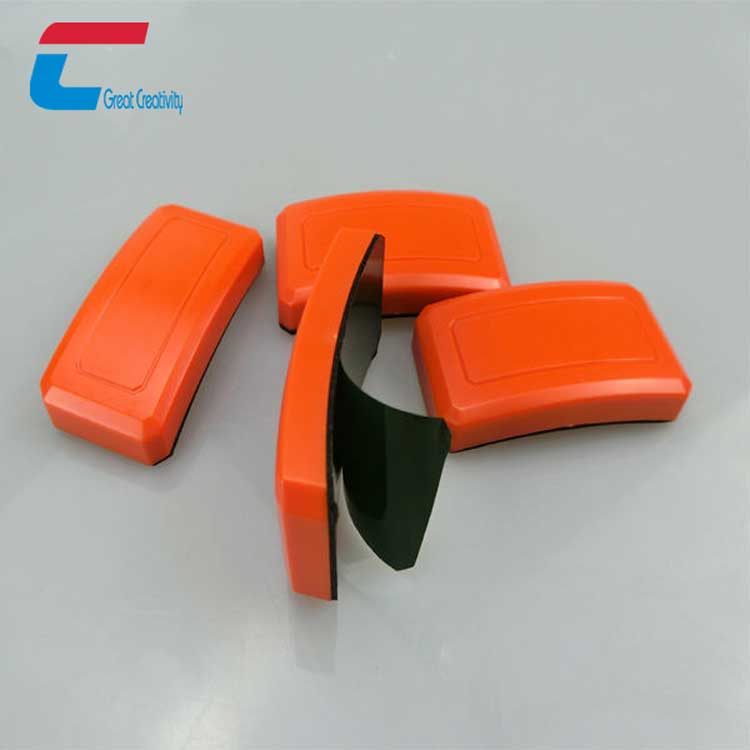

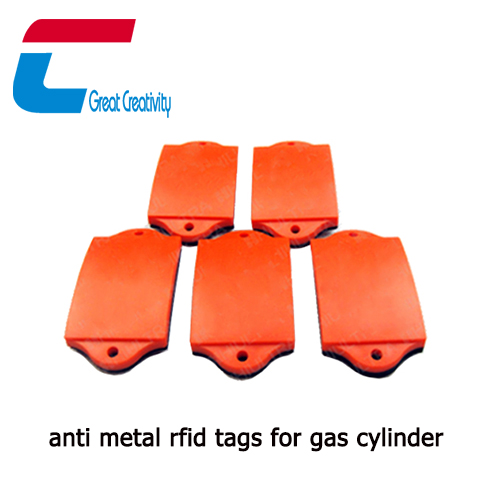

  • Item: RFID gas cylinder tags
  • Material: ABS+Sponge with glue
  • Size: 62*32*8mm or customized
  • Working frequency: 13.56MHz, 860-960MHz
  • Standard: ISO14443A, ISO15693, ISO/IEC 18000-6C EPC Class1 Gen2
  • Chip type: I CODE SLIX, FM1108, impinjM4D/M4E/M4QT/M5
  • Minimum Order Quantity: 500 pieces
  • Sample: Free Sample for testing
  • Certificate: ISO9001, SGS, ROHS, EN71
  • Company brand: Chuangxinjia
ABS rfid gas cylinder tags have good anti-metal properties, can be read and written at long distance in metal surface. Both indoor and outdoor are versatile. It has the characteristics of high temperature resistance, water resistance, acid and alkali resistance, impact resistance, and so on.

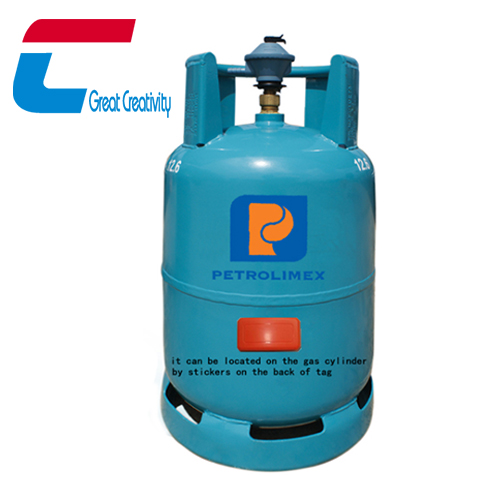

Mainly used in electronic equipment, asset maintenance, gas cylinders, elevator maintenance, auto parts, high pressure boilers, high pressure vessels, high pressure pipes, lifting machinery, recreational facilities and other metal goods and special equipment management.

anti metal RFID tags for gas cylinder

Detailed information:
Basic parameters
 Type:  passive rfid tags
 Working frequency:  13.56MHz, 860-960MHz
 Standard:  ISO14443A, ISO15693, ISO/IEC 18000-6C EPC Class1 Gen2
Physical parameters
 Size:  62*32*8mm or customized
 Material:  ABS+Sponge with glue
 Antenna:  etched aluminum
 Surface process:  printing, number printing, encoding
Performance parameters
 Chip:  I CODE SLIX, FM1108, impinjM4D/M4E/M4QT/M5
 Storage:  depands on chip
 Operating mode:  readable and writable
 Data storage time:  >10 years
 Rewritable number of times:  100,000 times
 Read and write distance:  0-5cm, 0-10m(depands on the reader and envirnment)
Environmental parameters
 Operation temperature:  (-25℃~+55℃)
 Store temperature:  (-35℃~+75℃)
 Application:  Warehouse tray, asset label and other metal carrier applications
 Package:  150 pieces / box
