Customized Size Blank Mifare NFC White LabelCustomized Size Blank Mifare NFC White Label

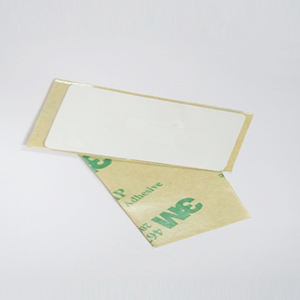

Customized Size Blank Mifare NFC White Label

  • 1: Material: paper/pvc/pet
  • 2: Size: 30*30mm, 50*50mm, 25mm diameter, 35*35mm, 85*54mm and as requested
  • 3: chip option: NXP Mifare class 1k, NXP Ultralight, NXP Ntag 213/215/216, Topaz 512
  • 4: ISO 14443 A and 13.56 Mhz
  • 5: Logo printing and data encode are available

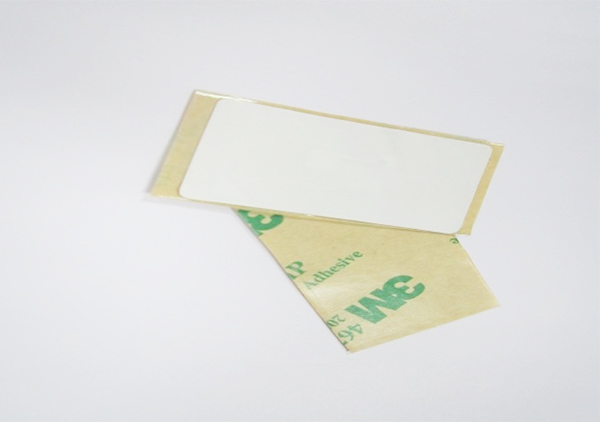

Customized Size Blank Mifare NFC White Label

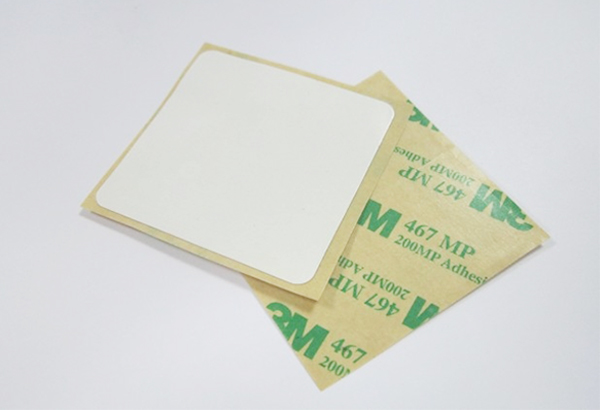

Customized Size Blank Mifare NFC White Label
Customized Size Blank Mifare NFC White Label
1. Specification
1:chip option: NXP Mifare classic 1k, NXP Ntag213/215/216, Topaz 512
2:Memory option: 1k byte, 168 bytes,  512 bytes, 512 bits
3:Frequency: 13.56 Mhz
4:Protocol: ISO 14443A
5:NFC Type 1 & 2
6:Reading distance: 3-10cm depend on reader power and using environment
7:Data transmission rate: 106 k bits/s
8:Write endurance: 100000 times

2.  Profile

 Surface: PVC /PET/Paper
 Size: 15*30mm, 25mm Dia, 35*35mm, 43*26mm, 50*50mm, 86*54mm, or as request
 Thickness: 0.2~0.5 mm


3. Working Environment

Working life: 5 ~10 years and depend on using environment
Store temperature: -25 ℃ ~50 ℃
Humidity: 20% ~ 90%RH
Working temperature: -40 ℃~ 65 ℃

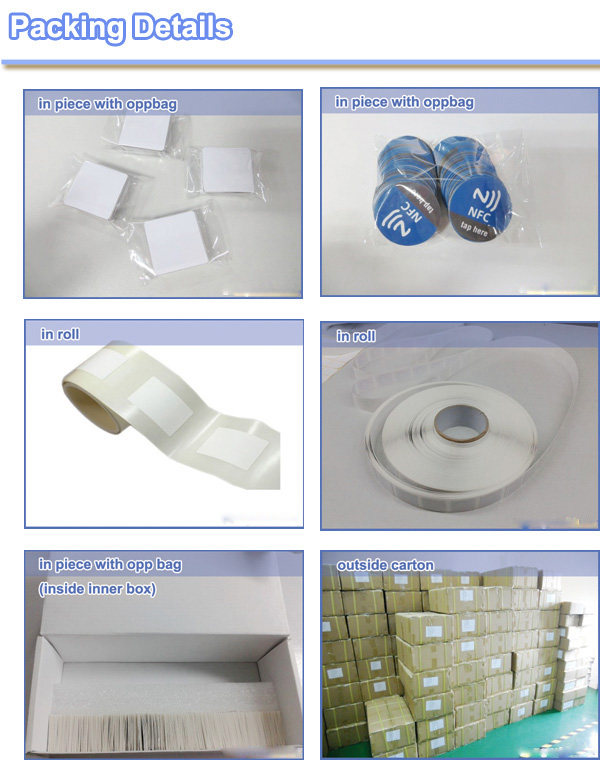

4. Packing

piece by piece or in roll packing


What is NFC ?

NFC is short for Nearly Field Communication, allows two electronic devices to exchange information if theyare close to each other. Fox example, the nfc cell phone can read data off of an nfc tag embedded inside of a poster or business card.


What is NFC labels ?

NFC Labels contains small amounts of data that can be ready by NFC enabled phones and reader. It's basically a chip plus an aluminum antenna, usually embedded within a sticker, card or poster, nfc labels can encode urls, and more.
