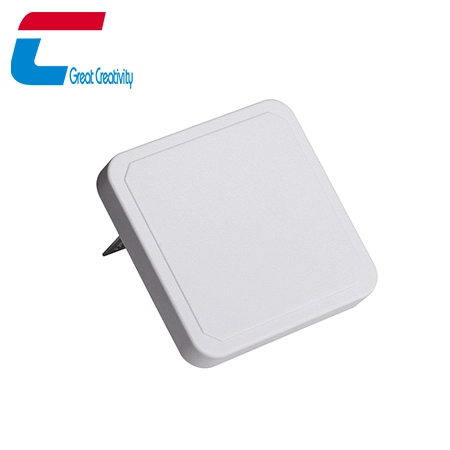

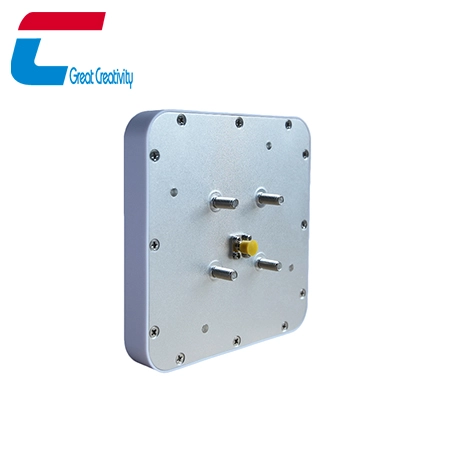

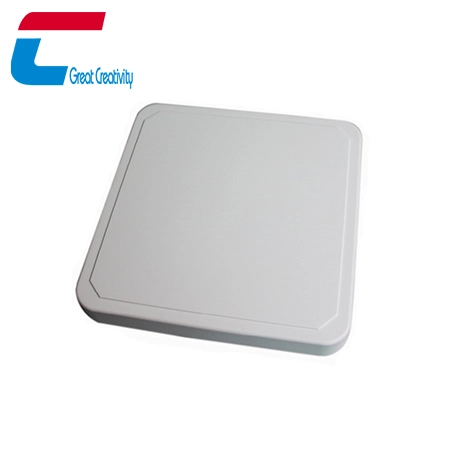

9dBi uhf rfid external antenna 865~868MHz9dBi uhf rfid external antenna 865~868MHz9dBi uhf rfid external antenna 865~868MHz9dBi uhf rfid external antenna 865~868MHz

9dBi uhf rfid external antenna 865~868MHz

  • Product Name: 9dBi uhf rfid antenna
  • Model Number: CJ2709B
  • Material: ABS
  • Size: 260mm×260mm×45mm
  • Color: White
  • Gain: 9dBi
  • Frequency: 865~868MHz
  • Maximum Output Power: 50W
  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: Chuangxinjia
CJ2709B UHF RFID antenna is a high-performance UHF RFID antenna in ETST operating Frequency (865 ~ 868MHz), with high gain, low VSWR and Circular polarization characteristics. The engineering plastic housing makes it with strong structure, high IP Grade and long stable operation. It is widely used in vehicle management, storage management, asset management and other fields.

Features:
Operating Frequency: 865~868MHz
Polarization: Circular polarization
Gain: 9dBi

Applications:
Intelligent vehicle management such as vehicle access control, non-stop charging, customs clearance, parking, auto weighing industry, etc.
Production automation, visualization management;
logistics industry such as container management, pallet management, etc.
Access control system;
Asset management, etc.

Product Parameters:
 Physical Parameters
 Antenna Dimension  260mm×260mm×45mm

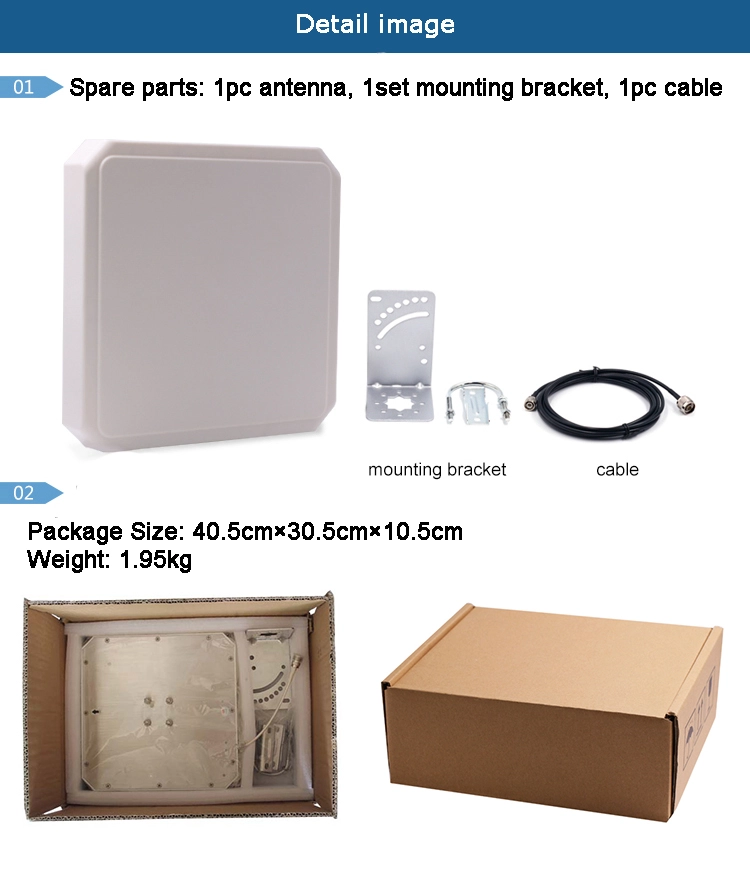

 Package Dimension  40.5cm×30.5cm×10.5cm
 Antenna Weight  About 0.95kg
 Antenna Gross weight  About 1.95kg
 Housing Material  ABS
 Color  White

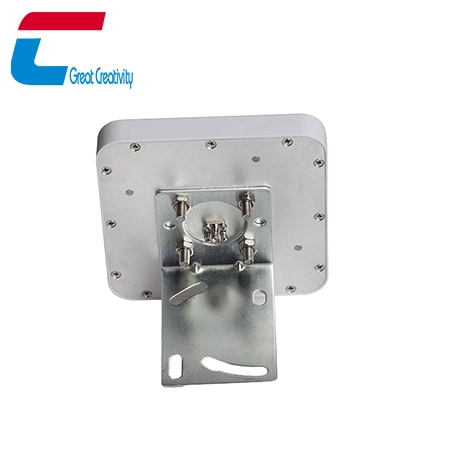

 Pole Diameter  Φ40mm~80mm
 Maximum Resistance To Wind Strength  60 m/s
 Operating Temperature  -40~+70℃
 Electrical indicators
 Operating Frequency  865~868MHz
 Gain  9dBi
 Beam Width  Hor: 70°, Ver: 70°
 Polarization Type  Circular polarization
 Voltage Standing Wave Ratio (VSWR)  ≤1.4
 Front To Back Ratio  ≥20
 Impedance  50Ω
 Maximum Output Power  50W
 Connector Type  N

9dBi uhf rfid antenna
