4 ports UHF RFID fixed reader long range4 ports UHF RFID fixed reader long range4 ports UHF RFID fixed reader long range4 ports UHF RFID fixed reader long range

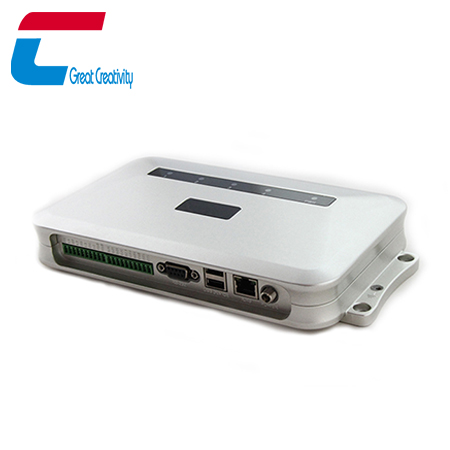

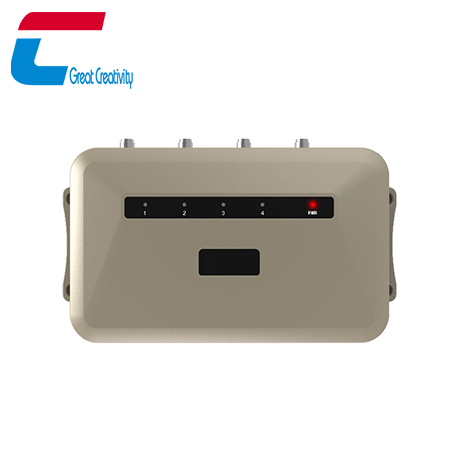

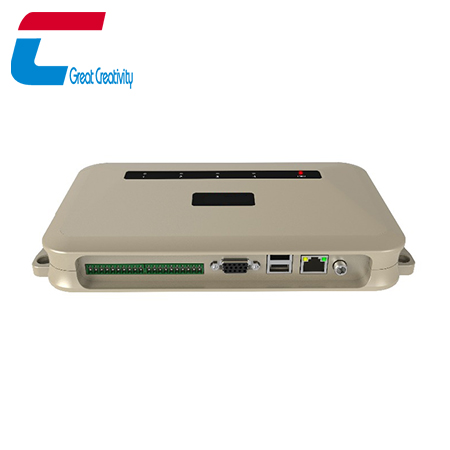

4 ports UHF RFID fixed reader long range

  • Product Name: UHF RFID fixed reader
  • Model Number: CJ2504B
  • Size: 255mm×145mm×35mm
  • Body material: Alloy
  • Frequency: ETSI: 865～868MHz/FCC: 902～928MHz
  • Protocol: ISO18000-6C/6B
  • Operating system: Linux 2.6
  • Weight: 1.4 kg
  • Minimum order quantity: 1 set
  • Place of Origin: China (Mainland)
  • Brand Name: Chuangxinjia
CJ2504B Four-Channel UHF RFID Reader is a high performance UHF RFID read&write device, Support ISO18000-6C/6B two kinds of protocol, working frequency: 920MHz～925MHz / 840MHz～845MHz, FCC: 902MHz～928MHz, ETSI: 865MHz～868MHz, JP: 916MHz～920MHz, output power support 0dBm-33dBm, long reading distance, high speed, multi-tag recognition capability, anti-interference ability, protective performance, easy to install and use.

Product Feature:
Using Impinj R2000 platform, bi-ampsynthetic circuits
Processor ARM9 platform, dominant frequency 400MHz
Support ISO18000-6B/6C protocol
Internal Linux2.6 operating system, customizable and good scalability
Support RJ-45/RS-232/RS-485/USB2.0/Wiegend interface and other multiple communication interfaces
Independent model, die-casting full aluminium, efficient, heat dissipation
Support RSSI and assess the signal strength
Support antenna detection function
With extendibility of Bluetooth and WIFI wireless transmission

Product Specifications:
 System
 Operating system  Linux 2.6
 CPU  ARM9, 400MHz
 Storage  DDR SDRAM: 128M, ROM: 256M
 Physical parameter
 Size  255mm×145mm×35mm
 Weight  1.4 kg
 Material  Alloy
 Input Voltage  DC 24V/2.5A
 UHF RFID
 Protocol  ISO18000-6B/6C
 Frequency  FCC: 902～928MHz; ETSI: 865～868MHz
 GB: 920～925MHz, 840～845MHz
 Output power  0～33dBm(±1.5dBm)
 Power regulation  1dB stepping
 Frequency bandwidth  ＜200kHz
 Frequency stability  ≤±10ppm
 External interface  RS-232, RS-485，wiegand, RJ45, USB2.0
 Work mode  Fixed frequency or hopping mode
 RJ-45communication speed  10M/100M Ethernet interface
 Reading speed  >400 times/s
 I/O interface  4 optoelectronic inputs /4 relay outputs
 Anti-interference ability  Good anti-interference algorithm, suppot reading multi-tag
 Software  Support RSSI, antenna detection, online update, data filteringfunction
 Radio frequency interface  4 TNC antenna interfaces
 Antenna  Need external antenna
 Reading distance  0～15m (depends on tag performance and usage environment)
 Writing distance  0～7m (depends on tag performance and usage environment)
 Working environment
 Working temperature  -20～+70°C
 Storage temperature  -40～+85°C
 Atmospheric pressure  86kPa～108kPa
 Humidity  5%～95% RH no condensation
 Protection level  IP55

Typical Applications:
Logistics industry such as container operation management, warehouse inventory management, goods tracking etc.
Intelligent vehicle management such as vehicle inspection, customs clearance, car pass inspection
Anti-counterfeiting identification
Production automation, parts process management etc.
