13.56 mhz mini hard pvc NFC smart tags
- Commonly used chip:
- NXP Ultralight, NXP Ultralight C, NXP Ntag 213/215/216, Topaz 512, etc
- Commonly specifications:
- 54*24mm, 70*40mm, 35*26mm, 50*35mm, 85*54mm
- The company brand:
- CXJ
- Product Details

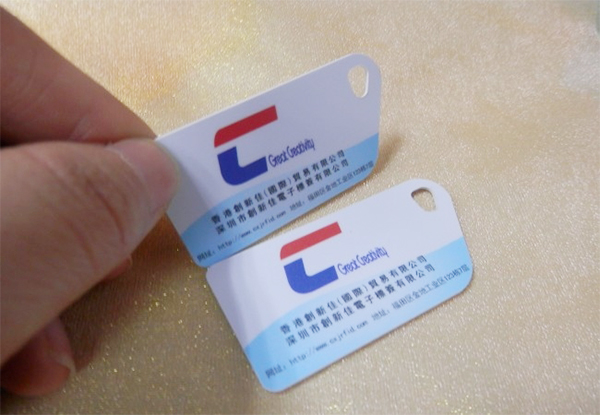

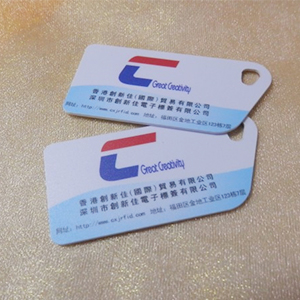

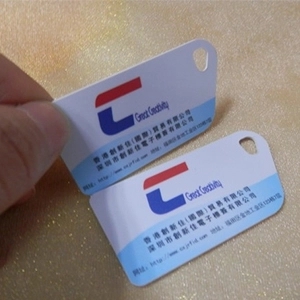

13.56 mhz mini hard pvc NFC smart tags
13.56 mhz mini hard pvc NFC smart tags are a kind of hard pvc material laminated and antenna connect chip inside the pvc material. People can not see chip outside. This kind of nfc tag will waterproof and use for key tag, mobile phone accessories, etc. We can set up more app inside when using nfc phone to touch them.
1. Specification
Chip Model: NXP Ultralight, NXP Ultralight C, NXP Ntag 213/215/216, Topaz 512.
Protocol: ISO 14443A
Frequency: 13.56 Mhz
EPPROM: 512 bits, 192 bytes, 168 bytes, 512 bytes.
Reading range: up to 10cm
Data transmission rate: 106 k bit/s
Write endurance: 100000 times
2. Profile
Material: Hard PVC material
Size: 54*24mm, 70*40mm, 35*26mm, 50*35mm, 86*54mm, or as request
Thickness: 0.76mm, 1.0mm, 1.5 mm
3. Working Environment
Working life: 5 years
Store temperature: -25 ℃ ~50 ℃
Humidity: 20% ~ 90%RH
Working temperature: -40 ℃~ 65 ℃
4. Craft
Printing and Laser Logo, Bar code and Serial numbers.
5. Application
Door control access, identify information, data transfer, e-tickets, e-wallet.
Related
Mifare Ultralight RFID tag/ Mifare NFC tag/ Mifare S70 rfid tag/ Mifare S50 rfid tag
Mifare tag/Mifare 1K tag/Mifare 4K tag
Mifare Ultralight C/Mifare ultralight tag/rfid tag
What Is NFC Used For ?
NFC can be thought of like putting a hyperlink on objects in the real word. NFC can be used for a wide variety of things, see some common examples below:
Marketing & Advertising - Consumers can get more information or coupons by touching an NFC tag. In turn, the company managing the tags can get analytics on their consumers.
Access Control - NFC tags can be used for users to gain entry into controlled environments. In addition, analytics can be gathered about where the user goes within that controlled space.
Mobile Payments - Users can pay for items and receive coupons using their mobile phone.
Mobile Phone Task Launcher - NFC tags can be used to launch actions within a mobile device such as calling a phone number or setting an alarm.
Access Control - NFC tags can be used for users to gain entry into controlled environments. In addition, analytics can be gathered about where the user goes within that controlled space.
Mobile Payments - Users can pay for items and receive coupons using their mobile phone.
Mobile Phone Task Launcher - NFC tags can be used to launch actions within a mobile device such as calling a phone number or setting an alarm.
