ABS UHF anti-metal RFID tagABS UHF anti-metal RFID tagABS UHF anti-metal RFID tagABS UHF anti-metal RFID tag

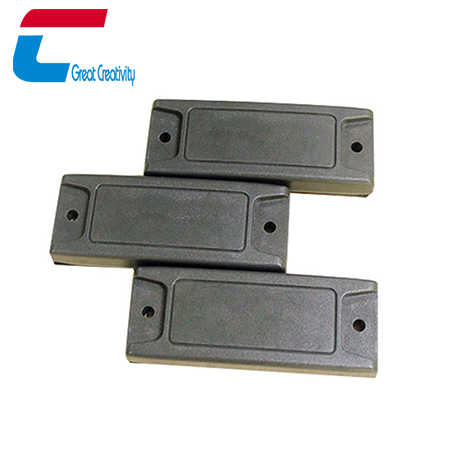

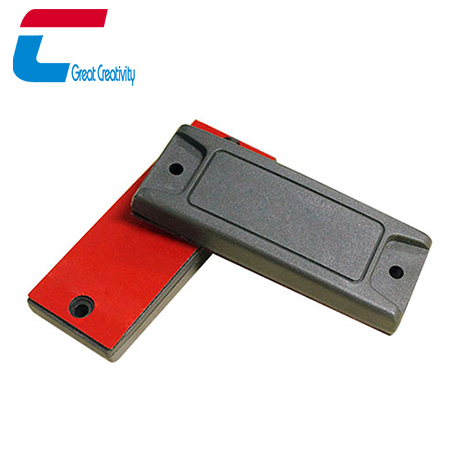

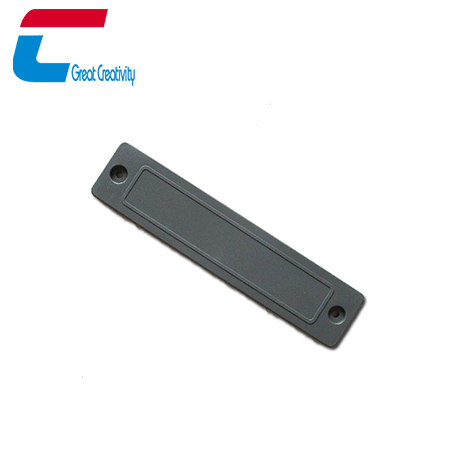

ABS UHF anti-metal RFID tag

  • Product: ABS UHF anti-metal rfid tag
  • Material: ABS+3M adhesive
  • Size: 78*29*10mm, 120*15*8mm or customize
  • Chip: NXP UCODE G2XM, Alien Hig3, Impinj Monza4, Monza5
  • Protocol: EPC Class 1 Gen 2, ISO18000-6C
  • Frequency: 860~960MHz
  • Brand Name: Chuangxinjia
  • Minimum order quantity: 500 pieces
  • Sample: Free Sample for testing
UHF anti-metal abs rfid tag is suitable for attaching to metal surface and working normally. It has a good waterproof property, and the protection level reaches IP65. The internal antenna is specially designed, which can be fixed on metal surfaces.

UHF anti-metal abs rfid tag has excellent and stable identification performance, reading distance can reach 8 meters, and the price is low. It is easy to attach to metal surfaces. Can be widely used in pallet management, shelf management, asset management and so on.

Product Specification:
 Product:  ABS UHF anti-metal rfid tag
 Material:  ABS+3M adhesive
 Size:  78*29*10mm, 120*15*8mm or customize
 Chip:  NXP UCODE G2XM, Alien Hig3, Impinj Monza4, Monza5
 Read distance:  50CM-5M(depands on the reader, antenna and envirnment)
 Protocol:  EPC Class 1 Gen 2, ISO18000-6C
 Frequency:  860~960MHz
 Data storage time:  >10 years
 Rewritable number of times:  100,000 times
 Operating temperature:  -20℃~+80℃
 Storage temperature:  -40℃~+150℃

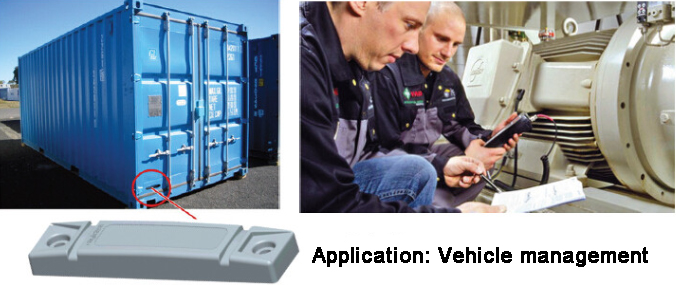

 Application:  asset management, logistics management, power grid inspection, high-speed rail inspection management, etc.

Application:
ABS UHF anti-metal rfid tag

ABS UHF anti-metal rfid tag
