Round NFC icon epoxy tag

Round NFC icon epoxy tag

  • 1.Material: PVC/PET/Paper
  • 2.Common specifications: 25mm diameter, 35*35mm, 50*50mm, 27*42mm, 85*54mm and as requested.
  • 3.Frequency: 13.56Mhz/HF
  • 4.Crafts: Four color off-set printing, Thermal Number,Digital Number, punching, UV Coating, epoxy coating etc.
  • 5.MOQ: 500 pcs.
  • 6.Free samples are available upon request.
Product Information of Round NFC icon epoxy tag

1.Specification of NFC icon epoxy tag of round design
Chip Type: NXP Ntag213, Mifare S50, NXP Ultralight, NXP Ultralight C, Broadcom Topaz 512 etc.
Technology: NFC Type 2 and ISO 14443A protocol.
Frequency/Protocol: 13.56mhz/HF.
R/W: the writing endurance will 100000 times.
EPPROM: 64 bytes, 192 bytes, 144 bytes, 512 bytes, 1k bytes etc. Different chips of different EPPROM.
Reading distance: 3-10cm depend on reader power and using environment.

2.Profile
Material: PVC/PET/Paper.
Size: 25mm Dia, 35*35mm, 43*26mm, 50*50mm,86*54mm, or as requested.
Thickness: 0.2-0.5mm or 0.8-1mm, or customized.

3.Working Environment
Working life: 5-10 years and depend on using environment.
Store temperature: -25 ℃-50 ℃
Humidity: 20%-90%RH
Working temperature: -40 ℃-65 ℃

4.Crafts
Four color off-set printing, Thermal Number,Digital Number, punching, UV Coating, epoxy coating etc.

5.Application
For use in NFC forum tag, smart-poster / connection handover / one-touch set-up, smart nfc enable mobile phone, e-wallet, e-ticket, Door control access, identify information, data transfer etc.

6.Packing and Shipping way
Packing: In roll or in single pieces, upon clients' request.
Delivery date: 5-7 working days for 10K after order confirmation.
Shipping way: by express(DHL,FEDEX), by air, by sea.
Price term: EXW,FOB,CIF,CNF
Payment: pay by TT,western union,paypal,etc.
Monthly capacity: 6,000,000pcs/month.
Certificate: ISO9001-2008,SGS,ROHS,EN71.

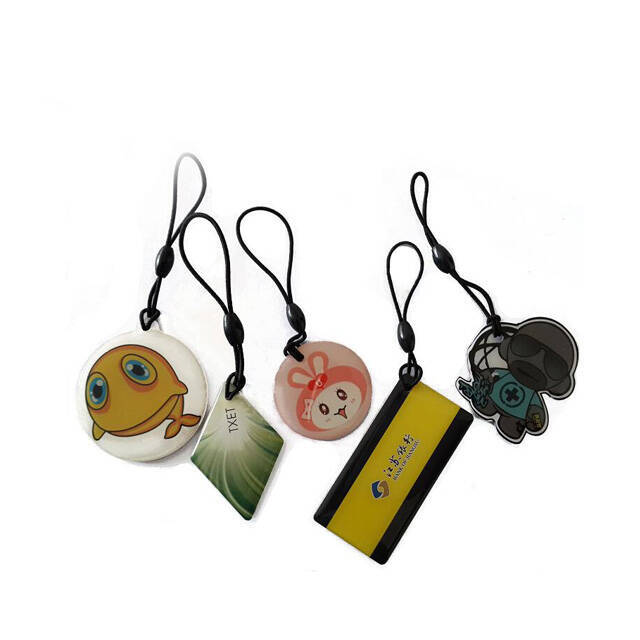

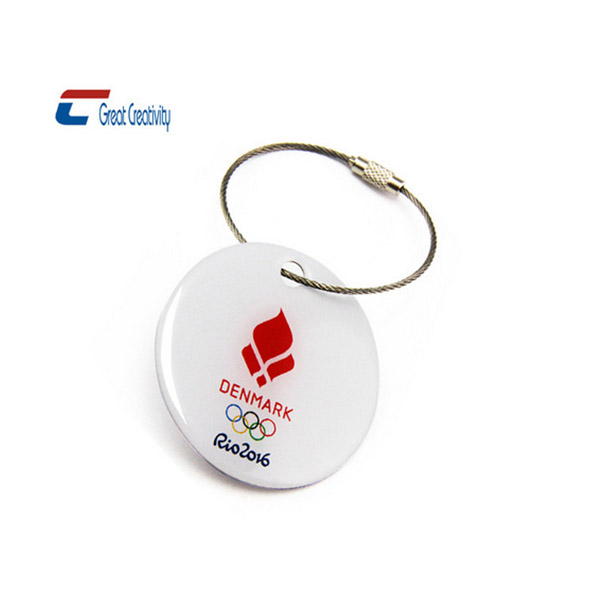

Product Picture of Round NFC icon epoxy tag
Round NFC icon epoxy tag

Application of NFC tag/NFC sticker/NFC label
NFC icon epoxy tag

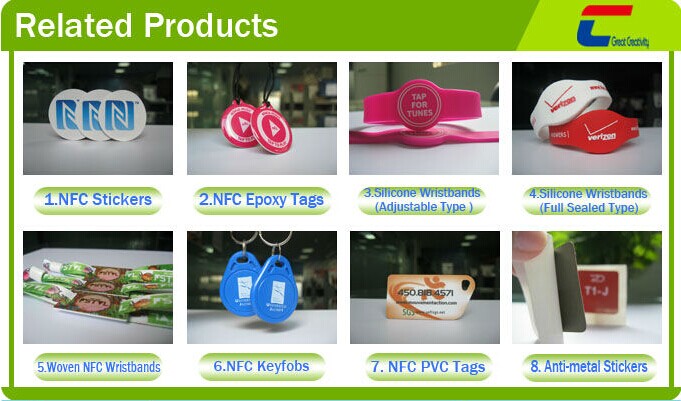

Our other products:
NFC icon epoxy tag

Company Information
Established in 1999, Shenzhen Chuangxinjia smart card co.,Ltd was specialized in producing and marketing of pvc card and RFID card.

In 2008, our company engaged in designing and researching of RFID antennas. In 2009 Huizhou Chuangxinjia RFID tag Co.,Ltd was established.
In 2010 Shenzhen Chuangxinjia RFID tag coporation was founded, a high technology enterprise which engaged in researching as well as producing and marketing of system project, application equipment and end product.
In July 28, 2011 Shenzhen Chuangxinjia smart technology Co.,Ltd was officially established.

In possession of three modern and high standard production line:
PVC card production line with monthly output of 40,000,000 pieces cards: Brand-new CTP machines and brand Heidelberg offset printing machines, 12 compounding machines.
Antenna production line with monthly output of 30,000,000 pieces cards: roll to roll printing machines, compounding machines, machines for erosion and engraving .
RFID end product production line with monthly output of 800,000,000 smart cards and 600,000,000 RFID tags: reversed assembling machines compound die cutting machines, laminating machines.

What is NFC Tag?
An NFC tag is a small passive (no battery) device which contains a tiny microchip attached to a small loop antenna. When the tag is scanned by an NFC reader such as a mobile phone, it powers up and wirelessly transfers information such as a web address, text or a command for an App. The NFC tag can be locked so that the data on the tag cannot be changed or left unlocked so the data can be changed again and again.
NFC tags are typically printed stickers or plain stickers, but they can be also enclosed in NFC products such as keyfobs, wristbands, hang tags and many other items.

If you want to know more information about our products, welcome to contact us in any time!
