passive NFC tag epoxy coating with logo printingpassive NFC tag epoxy coating with logo printing

passive NFC tag epoxy coating with logo printing

  • Company Brand: Chuang Xin Jia
  • Material: Epoxy coated, PVC
  • Size: 25mm diameter, 35*35mm, 50*50mm, 27*42mm, 85*54mm and as requested
  • Minimum Order Quantity: 500 pieces
  • Sample: Free samples are available upon request

passive NFC tag epoxy coating with logo printing



NFC epoxy tag is mainly used in mobile payment, NFC posters, stored value consumption, integral, NFC device data connection and data transmission, access control, public transportation, mobile wallet, mobile payment micropayments, smart posters, electronic coupons, electronic tickets, vending machines, parking fare register, access control attendance system, the subway system, member stored value consumption, etc.

Applications of NFC tag:
When at home
The NFC label on the door, set it to accomplish some things, such as: Open Wifi, dim light, turn off Bluetooth or automatic synchronization. With NFC Task Launch application, you can put the label set to "switch", then when you leave the house you can touch the tag again to change these settings (such as turning off Wifi).

While driving
The NFC tag affixed to the dashboard or in the vicinity of the middle of the control panel, set it to turn off Wifi, turn up the volume or turn on Bluetooth (phone). If your phone and the car horn is connected, you can set the label to open applications such as Pandora.

Getting ready for work
The NFC tag affixed to the surface of the table, set it to dim the light, turn off the sound, turn on Wifi or automatic synchronization. According to your own preferences, you can also set it to enter the music application, open daily matters, even landing Foursquare. If you put the tag set to switch, so you can touch it to turn off the previous event when you leave.

Bedside
You can also put label on the nightstand and set it to turn off the sound, turn on the alarm, turn off automatic synchronization, turn off the lights down reminders and light.

Specifications:

Item:

passive NFC tag epoxy coating with logo printing

Material:

Epoxy coated, PVC

Size:

25mm diameter, 35*35mm, 50*50mm, 27*42mm, 85*54mm and as requested

Available chip:

LF 125KHz

GK4001,EM4200,EM4100/EM4102,EM4550,EM4069, ATA5577,ATA5567, T5557,HITAG 1, HITAG 2,

HITAG S256, HITAG S2048 etc.



HF 13.56MHz

1).Type1

Broadcom Topaz512(454 bytes);

2).Type 2

NXP Ntag213(144 bytes)

NXP Ntag215(504 bytes)

NXP Ntag216(888 bytes)

MIFARE Ultralight®EV1(48 bytes)

MIFARE Ultralight®C(148 bytes)

MIFARE and MIFARE Ultralight are registered trademarks of NXP B.V. and are used under license.

3)Type 4

MIFARE® DESFire® EV1 2K

MIFARE® DESFire® EV1 4K

MIFARE® DESFire® EV1 8K

MIFARE DESFire are registered trademarks of NXP B.V. and are used under license.

4)MIFARE®(1K bytes)

MIFARE and MIFARE Classic are trademarks of NXP B.V.

5)MIFAREPlus®

MIFARE and MIFARE Plus are registered trademarks of NXP B.V. and are used under license.

6) FUDAN FM11RM08,TI2048,NXP ICODE SLI ,NXP ICODE Slix chip etc.

7) SRT512



UHF 860-960MHz

ISO/IEC 18000-6C EPC Class1 Gen2:ALI9662,AD824,AD803,AD830,U CODE G2XL,

U CODE G2XM,U CODE GEN2,Monza 3

ISO/IEC 18000-6B:U Code HSL,EM4324 etc.

Craft:

serial number printing, barcode  printing, logo printing, laser number printing, data encode etc.

Package:

100 pcs/Bag, 10 Bags/Box, 20 Boxes/Carton

Lead time:

5-7 days base on quantity

Shipping way:

by express(DHL,FEDEX), by air, by sea

Price term:

by EXW(shenzhen),FOB(shenzhen),CIF,CNF etc.

Pay term:

by TT, L/C, Western Union, MoneyGram etc

MOQ:

500 pcs

Sample requested:

Free sample for testing and shipping cost collection by customer

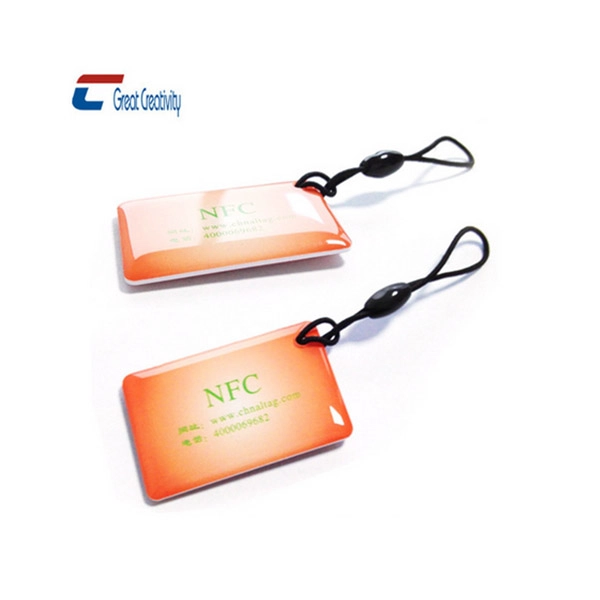

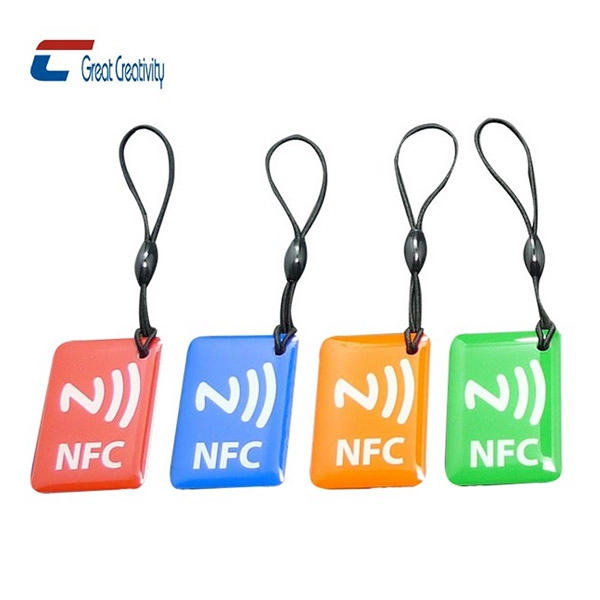

Product Photo
passive NFC tag epoxy coating with logo printing
passive NFC tag epoxy coating with logo printing
Lower price with larger quantity, welcome to consult and inquiry.
