nfc antenna sticker manufacture china

nfc antenna sticker manufacture china

  • Commonly used chip:
  • Mifare Classic 1k, NXP Ntag 213/215/216, Ultralight, Topaz 512
  • Commonly specifications:
  • 25mm diameter, 35*35mm, 50*50mm, 27*42mm, 85*54mm and as requested
  • The company brand:
  • CXJ
nfc antenna sticker manufacture china

1. Specification
1:chip option: NXP Mifare classic 1k,  NXP Ntag213/215/216, Topaz 512, Ultralight, Ultralight C
2:Memory option: 1k byte, 168 bytes,  512 bytes, 512 bits,192 bytes
3:Frequency: 13.56Mhz
4:Protocol: ISO 14443A
5:NFC Type 1 &2
6:Reading distance: 3-10cm depend on reader power and using environment
7:Data transmission rate: 106 k bits/s
8:Write endurance:100000 times

2. Profile

 Surface: PVC /PET/Paper
 Size: 15*30mm, 25mm Dia, 35*35mm, 43*26mm, 50*50mm, 86*54mm, or as request
 Thickness: 0.2~0.5 mm


3. Working Environment

Working life: 5 ~10 years and depend on using environment
Store temperature: -25 ℃ ~50 ℃
Humidity  20% ~ 90%RH
Working temperature: -40 ℃~ 65 ℃

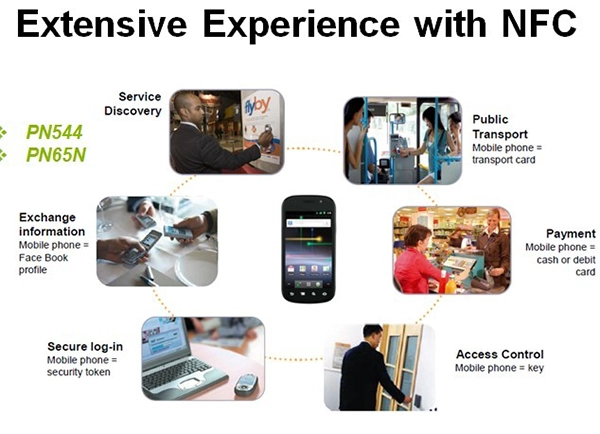

4. Application

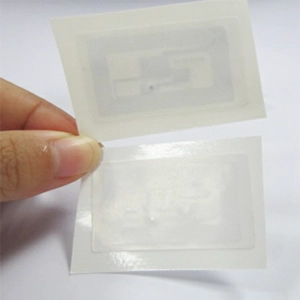

Technology of nfc antenna sticker
NFC antenna sticker will use nfc chip to embedded with aluminum antenna. It will be little difference with copper coil antenna, this kind of aluminum antenna will better use in flip chip technology and mass production in short time. The final product will be perfect thickness than copper coil made. And customer can image most of nfc sticker will softer paper surface, if copper coil made and it will not flat surface and easy to destroy for bending.

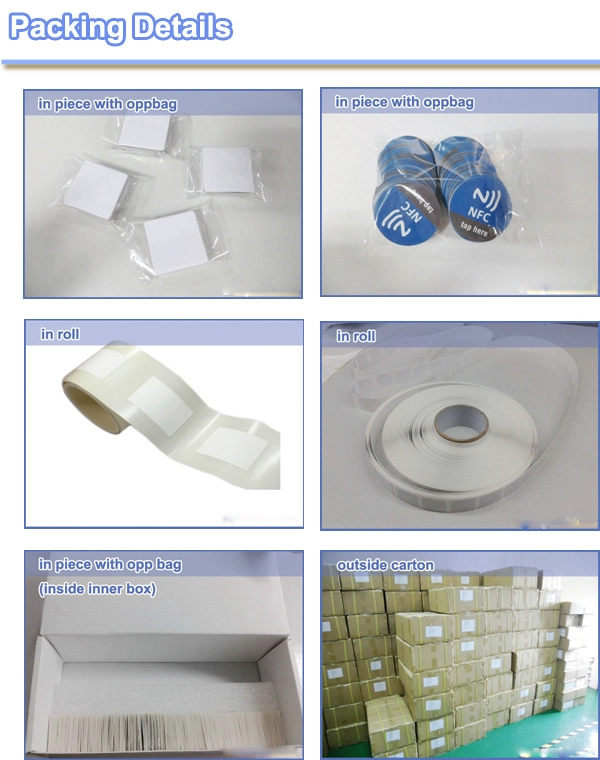

5. Packing

piece by piece or in roll packing

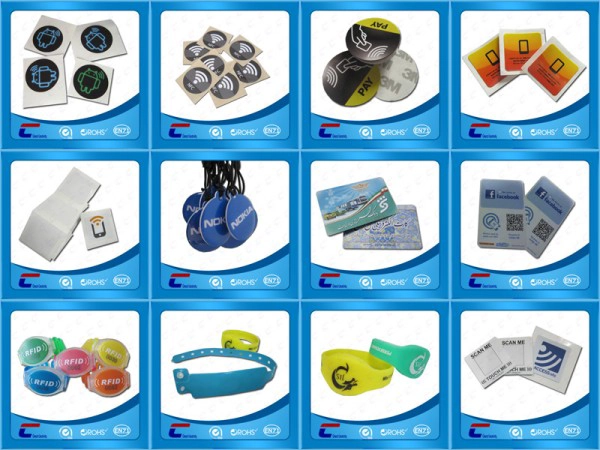

6. Another NFC Products
