RFID Tokens For Metro TrainsRFID Tokens For Metro TrainsRFID Tokens For Metro TrainsRFID Tokens For Metro Trains

RFID Tokens For Metro Trains

  • Item: One-way subway tokens
  • Material: ABS
  • Size: 30*30*3mm or customized
  • Working frequency: 13.56MHz
  • Standard: ISO14443A
  • Chip: Mifare S50/F08, Mifare Ultralight
  • Minimum Order Quantity: 500 pieces
  • Sample: Free Sample for testing
  • Certificate: ISO9001, SGS, ROHS, EN71
  • Company brand: Chuangxinjia
RFID subway tokens are a unique packaging product designed for the one-way ticket of the track system. Its hard plastic shell provides greater stability and can be recycled multiple times.

RFID Metro Ticket subway token is ultrasonic embedding with ABS/PPS house, water-proof and harsh resistant. Operating temperature of -40C ~ +70C. The Tokens can be installed on the pallet, the cartons, the machine etc with a nail to fix on. There are Ø30/40/50mm dimension options with different thickness and different hole shapes. You may also select the colors you prefer to: Black/ White/ Yellow.

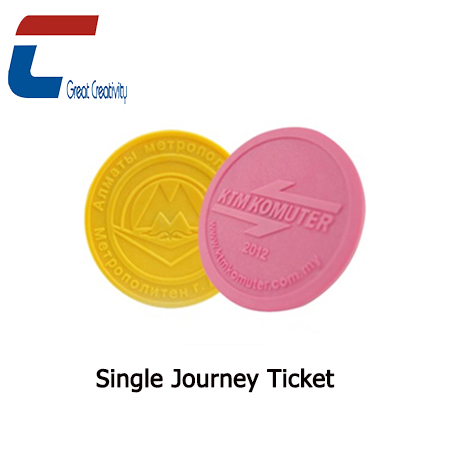

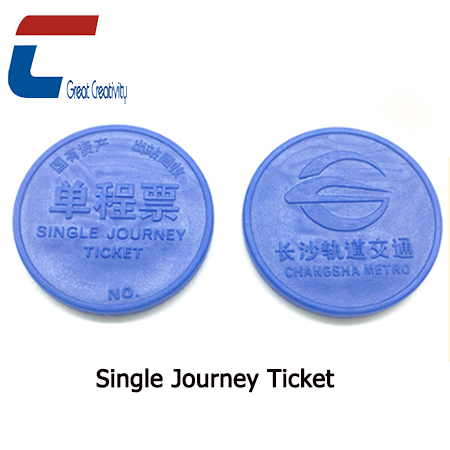

RFID tokens for metro trains

RFID tokens for metro trains

Product Specification:
 Chip:  Mifare S50/F08, Mifare Ultralight

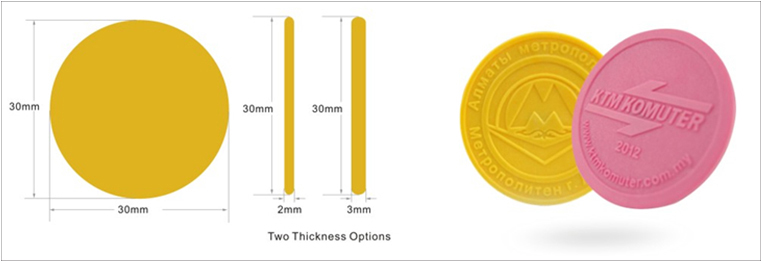

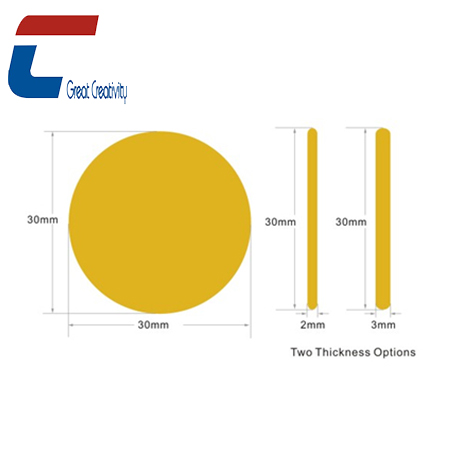

 Size:  Φ25/30mm (±0.2mm)
 Thickness:  2/3mm (±0.2mm)
 Material:  ABS
 Protocol:  ISO / IEC 14443 A
 Frequency:  13.56 Mhz
 Data transmission:  106 Kb / s
 Reading/writing time:  < 200 ms
 Read and write times:  100,000 times
 Data storage time:  10/50 years
 Operating temperature:  -40°C + 70°C
 Operating distance:  6cm(depends on the antenna)
 Color:  customized
 Printing:  silk-screen
 Packaging:  500 piece/box
 Application Case:  Guangzhou Metro, Iran's bus.
